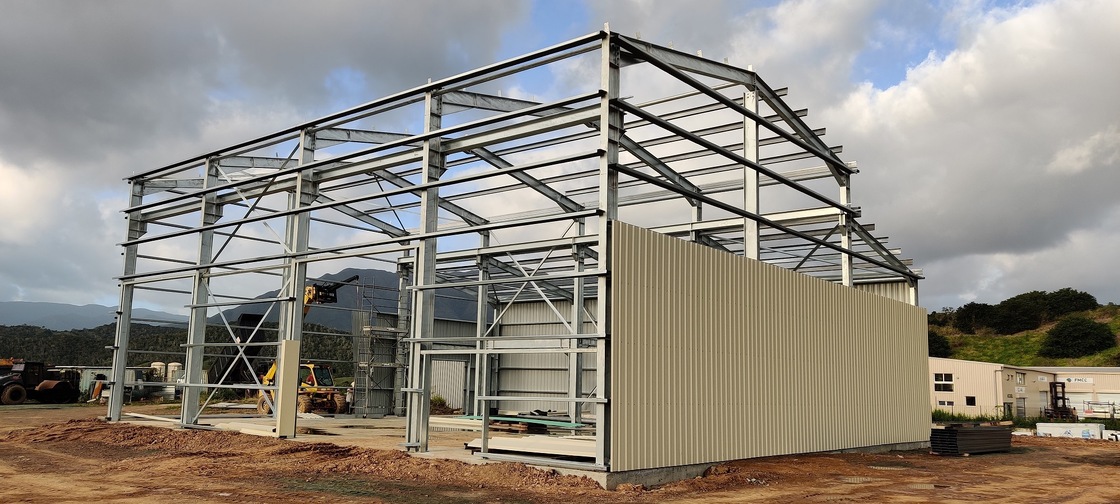

What Is a Prefabricated Steel Structure Building?
A prefabricated steel structure building is a bolt-together steel frame system in which every column, rafter, purlin, and connection plate is precision-cut, drilled, and welded in our factory — then containerized and shipped to your site for rapid assembly.
Unlike traditional on-site steel fabrication (which is slow, weather-dependent, and expensive in most countries), our approach delivers:
- 30–50% faster construction compared to conventional steel erection
- Zero on-site welding — 100% bolted connections
- Lower total project cost through factory efficiency and reduced site labor
- Consistent quality — every component passes dimensional inspection before packing
- This is not a "steel kit." This is a fully engineered structure, designed to your local wind, snow, and seismic loads.
Key Features
1. Full Code Compliance — Wherever You Build
- We don't ship a "generic" building and hope it passes. Every structure is engineered to your specific location's requirements:
- What you get: A full documentation package — structural calculations, material certificates, weld procedure specifications (WPS), NDT reports, and declaration of performance (DoP) where required.
-
| Standard |
Application Region |
| EN 1090-2 EXC2/EXC3 |
Europe, UK, Middle East |
| UKCA / CE Marking |
United Kingdom, European Union |
| NBCC + CSA S16 |
Canada |
| AISC 360 / ASCE 7 |
United States, Caribbean |
| AS/NZS 1170 |
Australia, New Zealand, Pacific Islands |
| SANS 10160 / SANS 10162 |
South Africa, Sub-Saharan Africa |
Bolt-Together System — No Site Welding
- Every connection in our steel frames is designed for bolted assembly. Your crew needs:
A mobile crane or telehandler Basic hand tools and torque wrenches Our color-coded erection drawing set No welding machines. No on-site NDT. No weather delays waiting for weld inspections.
Factory Pre-Assembly Inspection
- Before your steel is packed into containers, we pre-assemble the first structural bay in our factory yard. This isn't just a visual check — we:
- Verify all bolt hole alignment across column-to-rafter and rafter-to-rafter connections
- Check base plate flatness and anchor bolt template dimensions
- Confirm brace lengths and connection angles
- The inspection report — with photos and measurement data — is included in your shipment documentation. When your containers open on site, there are no surprises.
Custom Engineering for Your Climate
- Not all steel buildings are the same. We design to your actual environmental loads:
| Load Type |
Design Range |
Example |
| Snow load |
Up to 5.0 kPa |
Northern Canada, Scandinavia, Alps |
| Wind speed |
Up to 250 km/h (70 m/s) |
Hurricane zones, coastal Australia |
| Seismic |
Zone 0 to Zone 4 |
New Zealand, Japan, Chile |
| Temperature |
-45°C to +50°C |
Arctic to desert environments |
Corrosion Protection That Lasts
- Steel only lasts if it's protected. Our standard finish is hot-dip galvanizing to ≥ 85μm zinc thickness, tested to ISO 1461. For coastal or aggressive environments, we offer:
- Heavy galvanizing (≥ 140μm)
- Duplex system: galvanizing + epoxy primer + polyurethane topcoat
- Stainless steel fasteners (A2-70 / A4-80 grade) for critical connections
- Corten (weathering) steel upon request
FAQ
Q1: Can I have a visit to your factory before the order?
A: Why not? Welcome to visit our factory. You can fly to Fujian Quanzhou Airport, then we will pick you up at the airport, hotel booking service is available.
Q2:ls your price competitive compared with other companies?
A:Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q3:Do you accept container loading inspection?
A:You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q4:Do you offer designing service for us?
A:Yes, we could design full solution drawings as your requirements.By using AutoCAD ,PKPM ,3D3S,Tekla Structures (X steel) etc., we can design complex industrial building like office mansion, super marker, auto dealer shop,shipping mall, 5 stars hotel.
Q5:What is the delivery time?
A:Delivery time depends on order quantities. ln general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
Q6:How can you get a quotation for your projects?
A:You can contact us by email, phone, TM, WhatsApp and so on 24*7 and you will get reply within 8 hours. Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge. Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your confirmation.
