Steel Structure Building For Industrial Warehouse Use Prefab Engineered Building
Custom-Designed Steel Buildings for Industrial, Commercial & Agricultural Applications
Our prefabricated steel structure buildings are engineered, manufactured and supplied according to your project requirements.
Whether you need a steel warehouse, workshop, factory, agricultural building, machinery storage facility or large-span industrial building, we provide a complete solution from structural design and factory fabrication to quality inspection, export packing and delivery.
Key Features of Our Steel Structures
1. Custom Structural Design
We do not use a generic structural design for every project. Each building is engineered according to the project location, applicable standards and required structural loads.
Applicable Standards:
| Standard |
Application Regions |
| EN 1090-2 EXC2/EXC3 |
Europe, UK, Middle East |
| UKCA / CE Marking |
UK & EU |
| NBCC + CSA S16 |
Canada |
| AISC 360 / ASCE 7 |
USA & Caribbean |
| AS/NZS 1170 |
Australia, New Zealand & Pacific Islands |
| SANS 10160 / SANS 10162 |
South Africa & Africa |

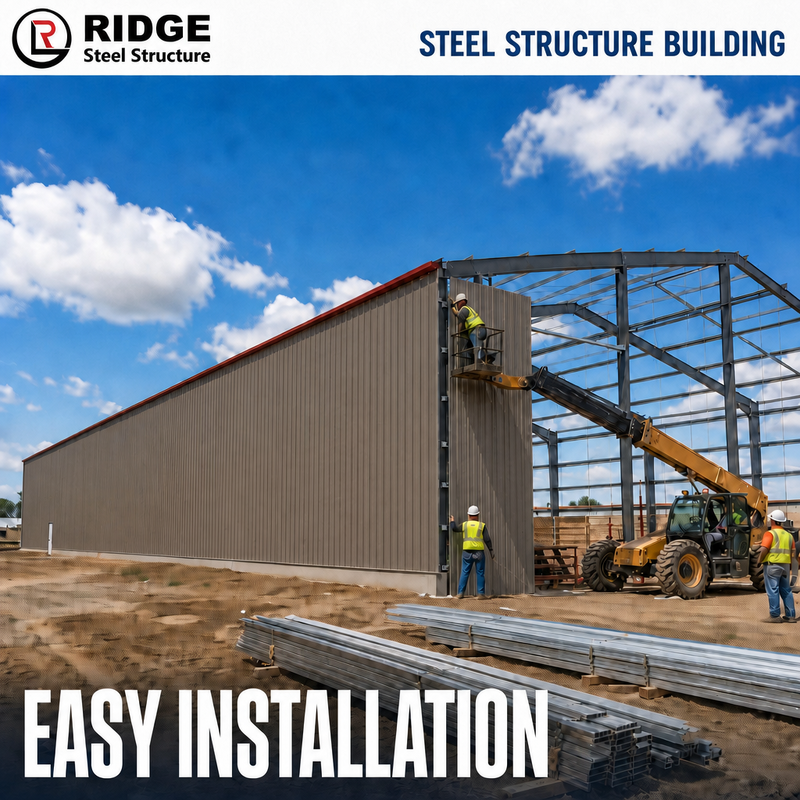

2. Bolt-Together System — Faster & Easier Installation
Our steel frames are designed primarily for bolted site assembly, reducing the need for on-site welding and fabrication.
Typical installation equipment includes:
- Mobile crane or telehandler
- Standard hand tools
- Torque wrench
- Erection drawings
3. Factory Quality Control
Before loading containers, we conduct a full factory inspection to ensure smooth installation on site.
We verify:
- Column-to-rafter and rafter-to-rafter connection alignment
- Base plate accuracy and anchor bolt dimensions
- Brace lengths and connection angles
- Overall component dimensions
- Welding and surface treatment
4. Designed for Your Local Climate Conditions
Every building is engineered based on actual environmental loads:
| Load Type |
Design Capability |
| Snow Load |
Up to 5.0 kPa |
| Wind Speed |
Up to 250 km/h (70 m/s) |
| Seismic Design |
Zone 0–4 |
| Temperature Range |
-45°C to +50°C |
From cold regions to coastal areas and high-wind zones, our structures are designed for reliable long-term performance.
5. Long-Lasting Corrosion Protection
The surface protection system is selected according to the project location and environmental conditions
Standard Protection:
✓ Hot-dip galvanizing ≥85μm zinc coating
✓ Tested according to ISO 1461
For harsh environments, we offer:
✓ Heavy galvanizing ≥140μm
✓ Duplex coating system (Galvanizing + Epoxy Primer + Polyurethane Topcoat)
✓ Stainless steel fasteners (A2-70 / A4-80)
✓ Weathering steel (Corten steel) upon request
Suitable solutions can be specified for coastal, industrial and other corrosive environments.
Project Case Study | 360㎡ Hay Storage Steel Barn in Alberta, Canada
Project Overview
Location: Red Deer County, Alberta, Canada
Building Type:Hay Storage Barn
Building Area: 360㎡ (12m × 30m)
Eave Height: 5.0m
Ridge Height: 6.8m
Customer Requirements
Located in central Alberta, the client needed a reliable storage building for approximately 400 tons of hay bales during the winter season.
Due to Alberta’s dry climate, strong winds, and large temperature variations, the building required excellent ventilation while maintaining structural stability against strong Chinook winds.
Engineering Solution
A customized prefabricated steel building solution was designed according to local climate conditions and project requirements.
| Item |
Specification |
| Structure |
Heavy-duty portal frame steel structure with welded H-section columns and rafters |
| Design |
12m clear span design for tractor operation and efficient hay bale storage |
| Wall System |
0.4mm corrugated steel wall cladding with 0.6m continuous ventilation openings |
| Roof System |
0.5mm Aluzinc steel roof panels with anti-corrosion coating |
| Doors |
2 * Sliding Doors (5.0m × 5.5m) at both gable ends |
| Ventilation |
Open gable design for natural airflow and moisture control |
| Foundation |
Concrete pier foundation with raised steel column base plates |
Project Advantages:
- Designed for Alberta’s cold climate and strong wind conditions
- Improved ventilation to protect stored hay from moisture and mold
- Drive-through layout for efficient tractor loading and unloading
- Prefabricated components for faster installation
Frequently Asked Questions (FAQ)
1. How long does it take to complete a steel building project?
The project timeline depends on the building size, design complexity, and destination.
Typical process:
- Design & Engineering: 15–20 working days
- Fabrication & Quality Inspection: 25–50 working days
- Shipping: Depends on destination port
Most standard steel building projects can be delivered within 10–14 weeks after order confirmation.
2. Can you provide structural design and engineering drawings?
Yes.Our engineering team provides a complete structural solution, including:
- Steel structure design
- Shop drawings
- Connection details
- Foundation reaction information
- Anchor bolt layout
- Installation drawings
The design can be customized according to your project requirements and local wind, snow, and seismic conditions.
3. Do you provide installation service?
Yes, we can provide installation support according to your requirements.
Options include:
- Detailed installation drawings and manuals
- Online technical guidance
- On-site installation supervision service
Our bolted steel structure system is designed for efficient assembly with local labor.
4. Can you customize the building size?
Yes. Width, length, height, roof slope, frame spacing, doors, windows, insulation and other features can be customized.
5. What materials are included in your steel building package?
A complete steel building package may include:
- Main steel frame (columns & beams)
- Roof purlins and wall girts
- Bracing system
- Roof and wall panels
- Doors and windows (optional)
- Accessories and connection components
The package can be customized based on your project needs.
6. How do you ensure product quality?
Quality control is carried out throughout the manufacturing process:
- Raw material inspection
- Welding quality control
- Dimensional inspection
- Surface treatment inspection
- Packing inspection before shipment
All components are checked before delivery to ensure smooth installation on site.
7. What information do you need before quotation?
To provide an accurate quotation, please share:
- Building size (width * length * height)
- Building location
- Application of the building
- Wind and snow load requirements (if available)
- Door and window requirements
- Insulation requirements
If drawings are available, please send them for a more accurate proposal.
Get Your Custom Steel Building Proposal
Looking for a prefabricated steel warehouse, workshop, factory, agricultural building or large-span steel structure?
Send us your building dimensions, location and intended use.
We will review your project and prepare a customized steel building solution according to your requirements.
Our Promise: Quality Craftsmanship, Tailored Solutions
We deliver durable, efficient, and customized steel structure buildings that meet your specific industrial and warehouse requirements with professional engineering support and comprehensive after-sales service.
