Steel Structure Industrial Building Factory Shed Prefab Metal Warehouse

Name: Steel Structure Industrial Building Factory Shed Prefab Metal Warehouse
Brand: Quanzhou Ridge Steel Structure Co.,Ltd.
SKU: RSM08
Price: 61.00 USD
Availability: InStock

Product Details

Place of Origin: FUJIAN,CHINA

Brand Name: QZ RIDGE

Certification: CE,SGS

Model Number: RSM08

Payment & Shipping Terms

Minimum Order Quantity: 500 square meters

Price: USD 55~68 square meters

Packaging Details: naked

Delivery Time: 45days

Payment Terms: L/C,T/T

Supply Ability: 20000 square meters per month

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Steel Structure	Surface Processing:	Painted Or Galvanized
Column And Beam:	Hot Rolled Or Welded H Section, I Section	Purlin:	C/Z Galvanized Steel(Q235)
Material:	Light Steel Frame	Installation:	Engineer Helps To Instruct Installation
Steel Grade:	Q235, Q355	Accessories:	Ventilator

Product Name:	Steel Structure
Surface Processing:	Painted Or Galvanized
Column And Beam:	Hot Rolled Or Welded H Section, I Section
Purlin:	C/Z Galvanized Steel(Q235)
Material:	Light Steel Frame
Installation:	Engineer Helps To Instruct Installation
Steel Grade:	Q235, Q355
Accessories:	Ventilator

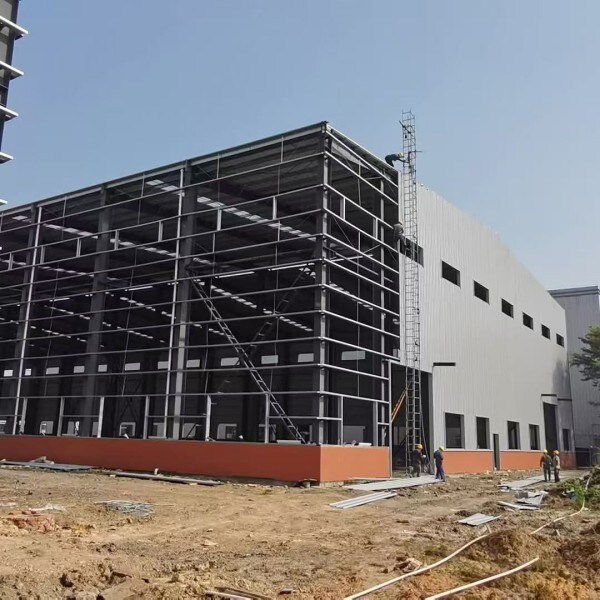

Steel Structure Industrial Building Factory Shed Prefab Metal Warehouse

Our prefabricated steel structure buildings offer superior durability, design flexibility, and cost-effectiveness for industrial and warehouse applications.

Key Advantages of Steel Structure Buildings

Superior Strength & Safety: Designed to withstand heavy snow loads, high winds, seismic activity, and fire. Steel is non-combustible and resistant to termites, rot, and mold.
Flexible Design: Large clear spans and open layouts allow for maximum space utilization and fully customizable floor plans.
Energy Efficiency & Sustainability: Ideal for superior insulation systems. Steel is highly recyclable, contributing to LEED certification points.
Cost Efficiency & Fast Construction: Prefabricated components reduce labor costs and significantly shorten construction time.
Low Maintenance: Durable finishes such as galvanized or painted coatings provide long-term resistance to corrosion and wear.

Structural Components & Specifications

Category	Component Name	Function	Standards/Notes
Primary Load-Bearing Members	Columns (Vertical)	Support vertical loads	High-strength low-alloy steel
Primary Load-Bearing Members	Beams (Horizontal)	Carry floor/roof loads	H-section, I-section most common
Primary Load-Bearing Members	Trusses	Long-span roof support	Triangular/parallel chord designs
Primary Load-Bearing Members	Bracings (Diagonal)	Resist wind/seismic forces	X/K-type configurations
Secondary Members	Purlins (Roof)	Support roof panels	Thickness: 1.5-3.0 mm
Secondary Members	Girts (Wall)	Support wall cladding	Spacing: 1.0-2.0 m
Connections & Fasteners	High-Strength Bolts	Member connections	M16-M30 common
Connections & Fasteners	End Plates	Beam-column joints	Pre-drilled bolt holes
Connections & Fasteners	Shear Studs	Steel-concrete composite action	Welded to beams for floor slabs
Enclosure Systems	Roof Panels	Weather protection	Standing seam/corrugated types
Enclosure Systems	Sandwich Panels (Walls)	Insulation + cladding	Fire rating: A2/B1
Enclosure Systems	ALC Panels (Floors/Walls)	Fire/thermal insulation	Density: 550-650 kg/m³
Accessories	Base Plates	Column-to-foundation transfer	Anchored with cast-in bolts
Accessories	Stair Modules	Prefabricated access	Integrated handrails (S304 stainless)
Accessories	Crane Rails	Overhead crane support	Welded to column brackets

Customization Options

Design & Dimensions

Clear Span: Flexible widths from 15m to 100m+ with no internal columns
Eave & Overall Height: Customized to suit storage, equipment, and ventilation requirements
Bay Length: Optimized distance between frames for cost and function
Roof Style: Single Slope, Double Slope (Gable), Multi-Span, or Sawtooth roof for skylights
Frame Design: Rigid frame, truss frame, or hybrid designs based on load requirements

Standard Product Parameters

Category	Description
Structural System	Gable roof steel frame structure
Foundation Type	Spread footing under columns
Dimensions	60m(L)x25m (W)x9m(H)
Length/Spans	Length: 60m, divided into 10 spans @6m each
Height	Eave height: 9m
Bay Width	25m
Roll-up Doors	8000 (W)x 5500 (H) x 2 units
Floor Area	1500m²
Wall Material	0.4mm thick steel sheet
Roof Material	0.4mm thick steel sheet
Drainage Method	External gutter drainage

Materials & Specifications

Steel Grade: Q235B, Q355B (Chinese standards) or equivalent ASTM A36, A572 Gr. 50 steel
Wall and Roof Cladding: Galvanized steel, Aluminum Zinc coated steel (AZ150), Color coated steel (PPGI/PPGL)
Thickness: 0.4mm to 1.0mm
Panel Type: Single skin or insulated sandwich panels (EPS, Rockwool, PU core)
Profiles: Various trapezoidal or tile-effect profiles
Color: Any color from standard RAL color charts

Doors & Windows

Door Types: Sliding doors, Roll-up doors, Sectional doors, High-speed doors with customizable sizes
Windows: Skylights (polycarbonate), side windows with customizable location, size, and quantity

Functional & Structural Add-ons

Crane Systems: Reinforcement for overhead cranes (5-ton, 10-ton capacity)
Ventilation: Ridge ventilators, louvers, wind-driven turbines
Lighting: Skylight strips or provision for lighting system installation
Snow Guards & Gutters: Customized based on local weather conditions
Mezzanine Floors: Internal mezzanine structures for additional storage
Bolt Connections: Customized designs for specific seismic or wind load zones

Compliance & Documentation

Design Codes: Structures designed according to local codes (US - AISC, MBMA; EU - Eurocode; Middle East - BS standards)
Load Calculations: Custom wind load, snow load, seismic load, and live load calculations
Detailed Drawings: Fabrication drawings, assembly drawings, and foundation drawings
Certification: Mill certificates for materials, ISO 9001 certificate, and required documentation

Customization Process

Inquiry: Provide basic requirements (length, width, height, location, intended use)
Quotation & Preliminary Design: Competitive quote and initial layout drawings
Detailed Discussion & Confirmation: Finalize materials, colors, and add-ons
Engineering & Drawing Approval: Structural calculations and detailed drawings for approval
Production & Quality Control: Manufacturing under strict quality control
Packaging & Shipping: Marked, bundled, and secure shipping of components
After-sales Support: Installation manuals and online guidance

Our Promise: Quality Craftsmanship, Tailored Solutions

We deliver durable, efficient, and customized steel structure buildings that meet your specific industrial and warehouse requirements with professional engineering support and comprehensive after-sales service.
