Highlight:
Product Name: |
Modern Steel Structures |
Feature: |
Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable |
Steel Grade: |
Q235, Q355 |
Type Of Steel For Building Structure: |
H-Section Steel |
Roof & Wall Panel: |
PU, EPS, Rock Wool/Fiber Glass Sandwich Panel |
Connection: |
Bolt/Welding/Rivet Connection |
Window And Door: |
PVC Or Aluminum Alloy/Sliding Door / Rool Up Door |
Drawing: |
Custom As Your Demand |

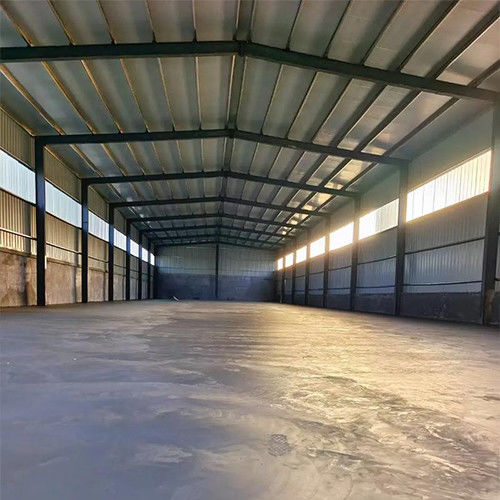

Easy to Install Prefabricated Steel Frame Building Metal Building Pre-Engineered Warehouse, Shed
Steel Structure Warehouse Steel Frame Construction Prefabricated Warehouse Metal Building Structure
Steel structure building is a new form in building construction, which is made from the organized combination of custom-designed structural steel members to meet architecture and engineering requirements of users. Steel structure involves sub-structure or members in a building made from structural steel,linked and fixed by welding, bolts and rivets.
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.
1. Main Steel Structure: Use build-up steel column, welded H-beam steel
2. Purlin: C-type steel
3. Roop panel: Single steel sheet or sandwich panel
4. Wall panel: The same to roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window
| |
Item |
Material |
Description and surface process |
| Main steel frame |
Column and Beam |
Q235 or Q355 |
H section steel with two coats of mid-gray paint |
| Purlin |
Q235 or Q355 |
Galvanizd C or Z type steel |
| Connecting Pieces |
Tie tube |
Q235 |
Circular Tube with two coats of mid-gray paint |
| Knee-Bracing |
Q235 |
L50*4 Galvanizd angle steel |
| Strutting piece |
Q235 |
φ12 Galvanizd Circular Tube |
| Column Bracing |
Q235 |
Circular Tube with two coats of mid-gray paint |
| Horizontal Bracing |
Q235 |
Circular Tube with two coats of mid-gray paint |
| Casing |
Q235 |
φ30*2.5 Galvanized Circular Tube |
| Door and Window |
Item |
Description |
| Door |
Roller shutter door or Sliding door |
| Window |
PVC Window or aluminum alloy window |
| Other parts |
Ventilating device |
Fan,Ventilation window |
| Bolt |
Foundation bolt,High strengthen bolt,Normal bolts |
| Skylight |
Yx-840 Glass Fiber Reinforced Plastics |
| Out/Inner ridge tile |
0.50mm Color sheet |
| Crane beam |
Q235 or Q345 H section steel with two coats of mid-gray paint |
Applications
- Buildings: Residential, high-rises, factories, hospitals, hotels, stadiums.
- Infrastructure: Bridges, airports, railways, hydro/wind power (penstocks, towers, foundations).
- Specialized: Museums, art centers, wastewater plants, shopping malls.
RIDGE Company Profile
- 20+ years in steel manufacturing.
- Global Reach: Projects in 30+ countries.
- Product Range:
- Structural Systems: H-shaped, box, pipe truss, girders.
- Prefab Buildings: Integrated houses, composite panels (rockwool boards).
- Core Advantages:
- Earthquake-resistant | Energy-saving | Fast installation | Aesthetic versatility.
