Highlight:
Product Name: |
Industrial Steel Framed Buildings |
Material: |
Light Steel Frame |
Column And Beam: |
Hot Rolled Or Welded H Section, I Section |
Surface Processing: |
Painted Or Galvanized |
Roof & Wall Panel: |
PU, EPS, Rock Wool/Fiber Glass Sandwich Panel |
Window And Door: |
PVC Or Aluminum Alloy;Sliding Door Or Rool Up Door |
Service Life: |
More Than 50 Years |
Drawing: |
Design The Drawing As Your Demand |
Pre-engineered Steel Structures Industrial Steel Construction Safety Steel Building
Prefabricated Steel Structure Building Metal Warehouse Customized High Quality Steel Structure Fabrication Professional Design Steel Structure Shed for Storage
STEEL WORKSHOP PRODUCT FEATURES
- 1. Light weight, high strength, 50 years durable use, no construction waste.
- 2. Quality certification ISO: 9001: 2008
- 3. Cost considering: Time saved, cost saved;
- 4. Easy move, materials can be recycled used, environmentally;
- 5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
- 6. Structural durabilities, easy maintenance.
STEEL WORKSHOP PRODUCT PARAMETER
| SIZE |
LENGTH*WIDTH*HEIGHT |
| Main Frame |
Material Q345(S355JR)(Gr50)or Q235(S235JR)steel;
Straight cross-section or Variable cross-section;
Steel welded H section painted or galvanized. |
| Type |
Single slope,double slope,Multi-slope;
Single span,double span,Multi-span;
Single floor,double-floor,Multi-floor; |
| Purlin |
C or z purlin,size from C 120~C 320,z 100~z 200 |
| Bracing |
X-type or other type bracing made from angle,round pipe |
| Connection |
High strength bolts,jintensive bolt,self-driling screws. |
| Roof & Wall |
Sandwich panel or color plate |
| Door |
Siding or rolling door |
| Window |
Aluminium alloy window |
| Surface |
Two times of anti-rust painting or hot-dip galvanized |
| Accessories |
Skylight belts,ventilators,down pipe,gutter etc |
| Packing |
Main steel frame without packng load in 40'GP,roof and wall panel load in 40'HQ |
STEEL STRUCTURE WORKSHOP APPLICATIONS
| Applications for steel workshop |
Type |
| Logistics warehouse for rail station |
Large span |
| High rise steel building for hotel |
Multi floor |
| Steel structure mill workshop |
Multi span |
| Steel structure machine line |
Heavy structure |
| Poultry farm |
Light structure |
| Car showroom |
Glass curtain wall system |
Quanzhou Ridge Steel Structure Company Introductions
- Quanzhou Ridge Steel Structure Co., Ltd. is one professional prefabricated steel structure Supplier in Fujian, China. We provide one stop solutions including: design, fabrication, erection and after-sales service of Pre-Engineered Building Steel Structure (PEBS).
- With experienced designer, senior engineer, detailing technician, production manager, strict quality inspector, well-trained welder in main plant and branch plants, a capacity of 50,000 Metric Tons of PEBS is being produced annually.
- Numerous high-quality projects have been completed both home and abroad.
- RIDGE Steel is also recommended by designers and consultants as trustworthy partner in fabrication for steel structure contractors.
OUR PROJECTS
Quanzhou Ridge Steel Structure's products are widely recognized and trusted by users. We extend a warm welcome to both new and existing customers to engage with us for future business collaborations and shared prosperity.
RIDGE Steel successfully completed projects covering America, Gemany, France, Australia, Canada, Indonesia , Kenya, Mozambique, Swiden, Philipines , Maldives and Thailand etc.

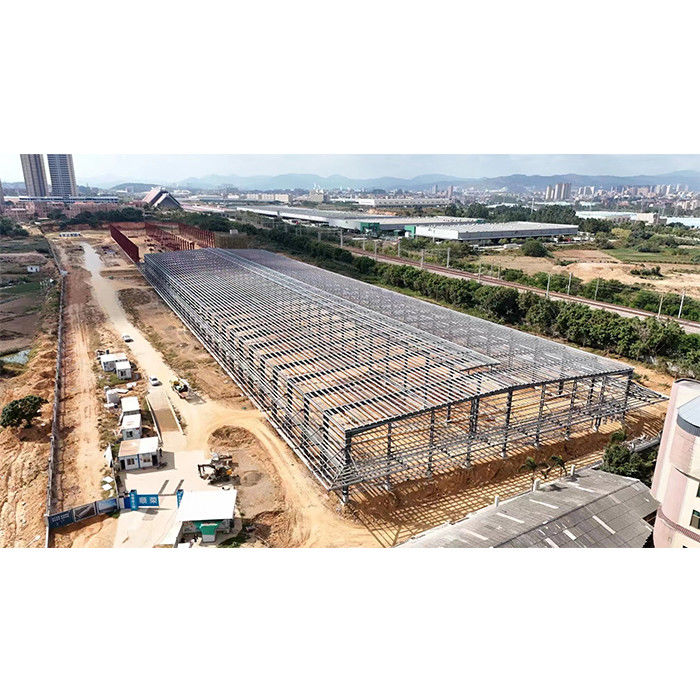

STEEL STRUCTURE
Primary frame element such as steel columns, steel beams and other members are made by hot-galvanized hot-rolled H section steels and welded section steel, which will be bolted together at site. A factory galvanization surface treatment is applied to get better anti-rusting and anticorrosion effect of primary framing elements.
SECONDARY FRAMING
Galvanized purlin, tie bar, roof and wall support, are formed as secondary framing.
BRACING SYSTEM
Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building.
CLADDING SYSTEM
Roof and Wall are covering of color-coated corrugated steel sheet, hot dipped with zinc and aluminum compound, which is fixed to the outside of structural building to protect it against bad weather or to have a good appearance.
FAQ
Q1: Can I have a visit to your factory before the order?
- A: Why not? Welcome to visit our factory. You can fly to Fujian Quanzhou Airport, then we will pick you up at the airport, hotel booking service is available.
Q2:ls your price competitive compared with other companies?
- A:Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q3:Do you accept container loading inspection?
- A:You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q4:Do you offer designing service for us?
- A:Yes, we could design full solution drawings as your requirements.By using AutoCAD ,PKPM ,3D3S,Tekla Structures (X steel) etc., we can design complex industrial building like office mansion, super marker, auto dealer shop,shipping mall, 5 stars hotel.
Q5:What is the delivery time?
- A:Delivery time depends on order quantities. ln general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
Q6:How can you get a quotation for your projects?
- A:You can contact us by email, phone, Alibaba TM, WhatsApp and so on 24*7 and you will get reply within 8 hours.
Firstly, please send us your project details and your requirements.
Then we will design accordingly, free of charge. Afterwards, please check and confirm whether you like the drawings.
If not, we shall get the drawings revised until your confirmation.
