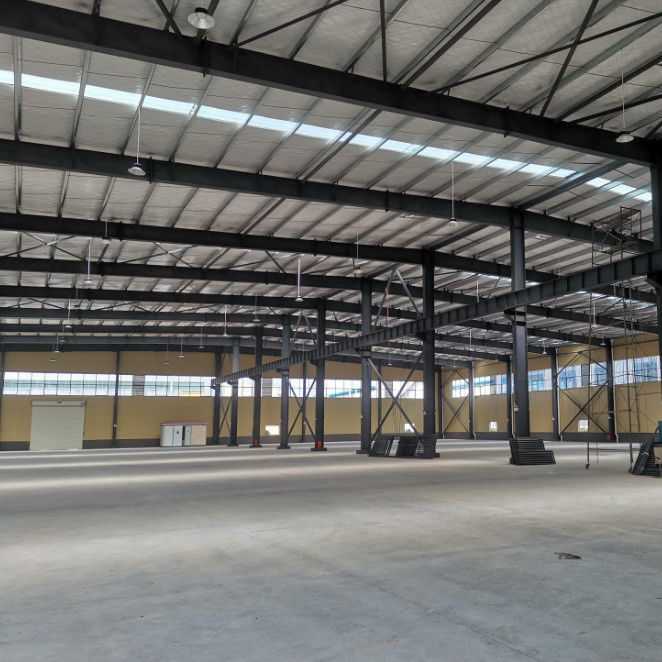

Steel Structure Building Prefabrication Quotation, Warehouse Factory Building

Steel Structure Building Prefabrication Quotation, Warehouse Factory Building

Structural Hierarchy & Components For prefabricated building:

Primary Members (Main Frame):

Function: Carry the major loads (dead load, live load, wind, snow, seismic) and transfer them to the foundations. Form the primary structural skeleton.

Components: Columns (vertical), Girders/Rafters (main horizontal/roof beams), Braces (diagonal members providing stability against lateral forces - X, K, or portal bracing systems).

Secondary Members:

Function: Span between primary members to support the roof and wall cladding (sheeting). Distribute cladding loads back to the primary frame.

Components:

Purlins: Installed horizontally on the roof, spanning between rafters. Typically cold-formed Z-sections (most common for efficiency) or C-sections.

Girts: Installed horizontally on the walls, spanning between columns. Also typically Z or C sections.

Eave Struts: Located at the intersection of the roof and wall (eave), connecting the ends of purlins and girts, providing continuity and support for eave details.

Roof and Wall Sheeting:

Function: The building envelope. Provides weather protection (rain, wind, snow), security, and contributes to the building's appearance. Connected to each other (side laps) and to the secondary members (end laps).

Material: Typically profiled (corrugated or trapezoidal) light gauge steel sheets. Often galvanized and painted (PVDF, polyester, SMP) for corrosion resistance and aesthetics. Insulated sandwich panels are also very common for thermal efficiency.

Other Building Components:

Function: Provide functionality, durability, and finish details.

Components:

Fasteners: High-strength bolts (for primary connections), self-drilling/tapping screws (for sheeting and connecting sheeting to secondary members), rivets.

Closure Strips: Seal gaps at ridges, eaves, and side laps.

Flashings & Trims: Edge details around doors, windows, corners, ridges.

Gutters & Downpipes: Rainwater management.

Ventilators/Roof Fans: Air circulation and temperature control.

Doors & Windows: Access, light, ventilation.

Crane Systems: (If applicable) Light-duty runway beams or monorails supported by the primary structure.

Insulation: (If not using sandwich panels) Roll or blanket insulation installed over purlins/girts under the sheeting.

Quanzhou Ridge Steel Structure Company Complete Projects



Company Introduction

Quanzhou Ridge Steel Structure Co., Ltd was founded in Fujian china, and is a professional manufacturer of steel structures with 20 years of exporting experience, finished 1820 projects, totaling 7,600,000 square meters. We have 2 modern factories with a total area of 21,000 m², 20,000 tons annual produced capacity.

RIDGE Using high-quality steel raw materials, 3D model solutions are customized for clients. The products are sold to many overseas countries, and engineers provide online guidance for installation. Believe in Ridge, believe in quality, win-win cooperation!


WHY CHOOSE QUANZHOU RIDGE STEEL?

1. We supply one-stop service from 3D model, design drawing and construction drawing, online technical support, to return and replacement.

2. With patented pallet, it is easily to load and unload.

3. Nice appearance, smooth surface and different painting color options for customized.

4. Stable and durable, could assist strong wind and heavy snow.

5. Cost-effective, low cost and fast construction, the materials can be recycled.
