Highlight:
Stable Steel Structure Hotel Building
, Steel Structure Hotel Building Lightweight
, Modern Steel Structure Apartment Building
Product Name: |
Steel Structure Hotel Building |
Project Solution Capability: |
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation, Others, Industrial Garage Warehouse Shed Workshop |
Application Fields: |
Stable Steel Structure House |
Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Installation Drawing: |
Provide Online Installation Drawings |
Bracing: |
X-type, V- Type Or Other Types Bracing Made From Round, Angle Pipes |
After-sale Service: |
Onsite Installation, Onsite Training, Onsite Inspection, Return And Replacement, Industrial Garage Warehouse Shed Workshop |
Stable Steel Structure Hotel Building Lightweight Modern Steel Structure Apartment Building
Modern Designed Steel Structure Workshop and Warehouse Building for Office Hotel and Apartment Use
steel structure product parameter
RIDGE Steel is committed to designing and providing customers with ideal steel warehouse-building solutions for storage and cargo management
Steel warehouse buildings are available in a variety of structures, from simple two-bay warehouses to large industrial and commercial buildings.
The unique steel frame structure of prefabricated warehouses can be easily built in a short period. And the maintenance cost of the storage center is extremely low, and it can even withstand harsh weather conditions.
A steel warehouse building is a structural frame composed of primary steel columns, beams, and secondary structures, which serves as a shell to accommodate electrical and plumbing facilities. One of the main concepts of steel warehouse buildings is that they use wide spans, so a single-compartment space can be divided into multiple small rooms without the need for external column support. This advantage will save construction costs, especially for large warehouses and large factories, because it takes up less land than traditional construction methods.
|
|
|
Project sample
|

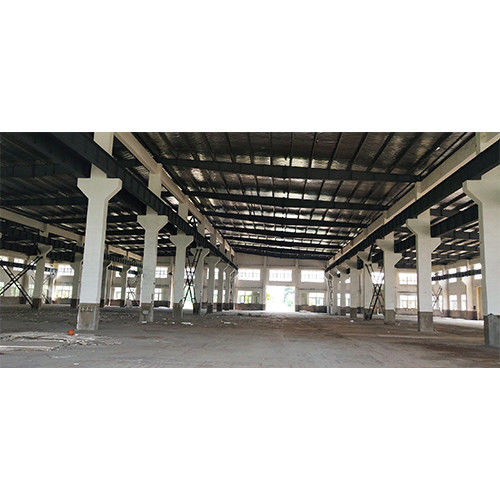

Steel structure warehouse
|
|
Building size
|
Such as 78*30*8.5 m/ customized
|
|
|
|
Steel column
|
H(300-550)*200*6*10 mm , steel Q345
|
|
Steel beam
|
H(300-550)*180*6*8 mm, H 300*180*6*8 mm,steel Q345
|
|
|
|
Roof purline
|
C180*75*50*2.5 mm
|
|
Wall purline
|
C180*75*50*2.5 mm
|
|
Cross support
|
20 round steel bar, steel Q 235
|
|
Column bracing
|
20 round steel bar, steel Q 235
|
|
Angle brace
|
L 50*4 Angle steel , steel Q 235
|
|
Tie bar
|
89*3 mm, steel Q235
|
|
|
|
Roof panel
|
50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool)
|
|
Wall panel
|
50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool)
|
|
Rolling up door
|
Automatic rolling up door
|
|
Single wing door
|
Sandwich panel door
|
|
Window
|
Aluminum/ PVC sliding window with single glass
|
|
Fittings
|
Glass adhesive, self-tapping screw, etc
|
|
|
|
Embedded
|
M 24 steel Q 235, process
|
|
Intensive bolt
|
Grade 10.9
|
|
Ordinary bolt
|
Grade 4.85
|
Quanzhou Ridge Steel Structure Company Design Case
Quanzhou Ridge Steel Structure Company Complete Projects
American warehouse 19x15m
Three 4.5m x 4.8m rolling shutter doors on one side of 19m, one small door on the corner side of 15m, snow thickness 250mm, wind speed 30km/h, region: Tacoma, USA
Company Introduction
Quanzhou Ridge Steel Structure Co., Ltd was founded in Fujian china, and is a professional manufacturer of steel structures with 20 years of exporting experience, finished 1820 projects, totaling 7,600,000 square meters. We have 2 modern factories with a total area of 21,000 m², 20,000 tons annual produced capacity.
RIDGE Using high-quality steel raw materials, 3D model solutions are customized for clients. The products are sold to many overseas countries, and engineers provide online guidance for installation. Believe in Ridge, believe in quality, win-win cooperation!
Advance:
Feature and application of the standard type of steel building structure:
1. Portal frame structure has simple force, clear force transmission path, and fast construction speed. It is widely used
in industrial and civil buildings such as industrial, commercial, cultural, and entertainment public facilities.
2 .Steel building frame structures are flexible and can form a larger space. It is widely used in the multi-story and high-rise
buildings such as commercial office buildings, shopping mall, conference center and other buildings.
3 .Steel truss structures is using small cross-section tube to form larger cross-section components, which are often used in
industrial and civil buildings such as large span roof, bridge, tower, marine oil production platform, etc., with large span or
height in the building.
4. The steel grid structure is a high-order statically indeterminate space structure composed of many rods according to certain rules with small space stress, lightweight, high rigidity, and excellent seismic resistance. It can be used as a gymnasium, exhibition hall, petrol station and hangars, etc.
FAQ
What is the Payment Term?
30% Deposit In Advance; 70% Balance Before Shipment.
What payment method available?
We can accept TT; Western Union, Paypal, Alibaba Trade Assurance.
What port is close to you?
We are close to SHANGHAI, NINGBO port.
How can i trust you on quality?
We are factory with 16 years experience, Passed CE; TUV; ISO9001 Certificates.
Can you customize the design?
Yes, We have professional technical team and desinger.
What service do you offer?
Customized service, After-sell service, Technical consulting.
