Highlight:
Hot Dip Galvanized Steel Structure
, Painting Steel Buildings Manufacturers
, Prefab Steel Building Manufacturers
Painting / Hot Dip Galvanized Steel Structure Prefab Steel Building Manufacturers
Painting or Hot Galvanized Prefabricated Framing Prefabricated Bulk Warehouse Hangar Light Steel Structure Shed for Construction

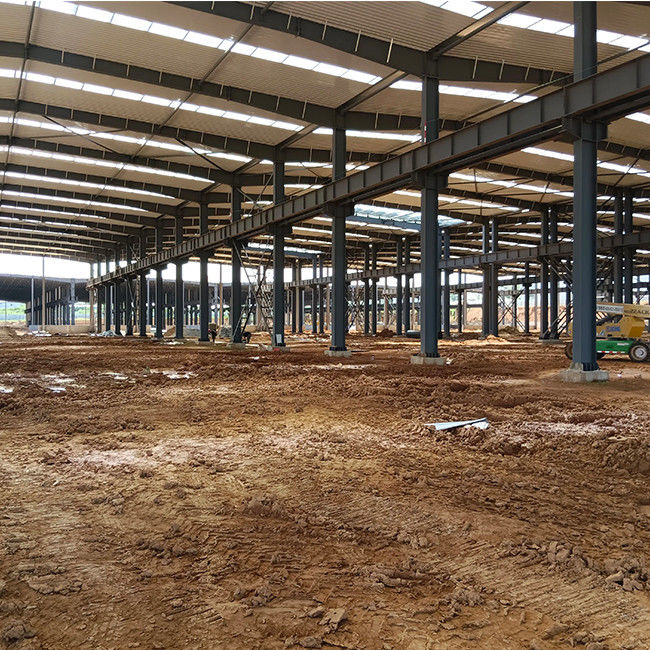

steel structure building design case
1. Size: 160X50X9m( eave height) 10%slope
2. Wind 150Km/H Snow load: 95kg/m2 no earthquake
3. Total steel weight: 320 ton Q345B steel structure
4. Maintenance: Galvanized steel sheet
5. 2 Sets 10 ton Single beam Crane
6. Surface treatment: Painted
7. Twice primer lacquer: Alkyd Primer (mixed paint); Iron red, medium grey
8. Two months delivery date
9. One stop service
Construction Process:
Fabrication: Steel components prefabricated off-site for quality control and faster construction.
Erection: Steel frame erected using cranes, followed by installation of roof and wall cladding.
Finishing: Installation of MEP systems, flooring, and painting.
Foundation:
Type: Reinforced concrete spread footings.
Design Considerations: Soil bearing capacity, seismic loads, and differential settlement.
Mechanical, Electrical, and Plumbing (MEP) Systems:
Lighting: High-efficiency LED lighting with motion sensors.
Ventilation: Natural ventilation through roof vents and exhaust fans.
Fire Protection: Sprinkler system and fire extinguishers.
Plumbing: Sanitary fixtures and drainage system.
steel structure material lists
| Dimensions |
Length |
H beam: 4000-15000mm |
| Thickness: |
web plate: 6-32mm |
| wing plate: 6-40mm |
| Height |
200-1200mm |
| Color |
According to customers |
| Size |
MOQ is 200 m2, width * length * eave height, |
| Advantages |
1. Lower cost but beautiful outlook. |
| 2. High safety performance. |
| 3. easy to assemble and dismantle |
| 4. manufacture under complete quality control system---ISO9001 |
| 5. installation with instruction of experienced engineers |
| 6. Non-pollution. |
| Main components |
Base |
Cement and steel foundation bolts |
| Main frame |
H beam |
| Material |
Q235B, Q345B or others as buyers' requests. |
| Purlin |
C or Z purlin: Size from C120~C320, Z100~Z20 |
| Bracing |
X-type or other type bracing made from angle, round pipe |
| Bolt |
Plain bolt and High-strenth bolt |
| Roof & wall |
Sandwich panel or color plate |
| Door |
Sliding or rolling door |
| Window |
Aluminium alloy window |
| Surface |
Two lays of Anti-rust Painting or Hot Dip Galvanized |
| Sheet |
0.5mm or 0.6mm galvanized sheet |
| Accessories |
Semi-transparent skylight belts, Ventilators,down pipe, Glavanized gutter, etc |
quanzhou ridge steel structure company introduction
Quanzhou Ridge Steel Structure Co., Ltd was founded in Fujian china, and is a professional manufacturer of steel structures with 20 years of exporting experience, finished 1820 projects, totaling 7,600,000 square meters.
We have 2 modern factories with a total area of 21,000 m², 20,000 tons annual produced capacity. Our products are extensively used in warehouses, workshops, commercial buildings, industrial buildings, agricultural buildings, and offices.
We are dedicated to crafting the most valuable and tailored architectural steel structure solutions.
For years, we have successfully served many corporations globally, and have provided clients with innovative products and high-quality service. We have completed many projects for customers worldwide.
Our products are widely recognized and trusted by users. We extend a warm welcome to both new and existing customers to engage with us for future business collaborations and shared prosperity.
